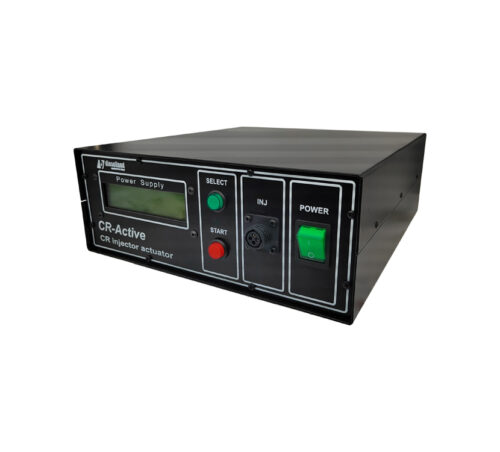

CR-Active PROF. The CR-Active actuator is designed to provide a control signal
The CR-Active actuator is designed to provide a control signal to the Common Rail injector solenoid valve.Used to measure valve stroke when measuring the magnetic gap of Common Rail electromagnetic injectors.
Main technical data and characteristics
- Power supply voltage: ~220 V ±15%;
- Power consumption – up to 150 Wt;
- Four values of the current level of the control signal;
- The duration of the control signal is 1.5 s;
- The number of operations per minute – no more than 12;
- Short circuit protection;
- Dimensions of the activator (depth x width x height) mm – 240х230х72;
- Unit weight: netto 4 kg

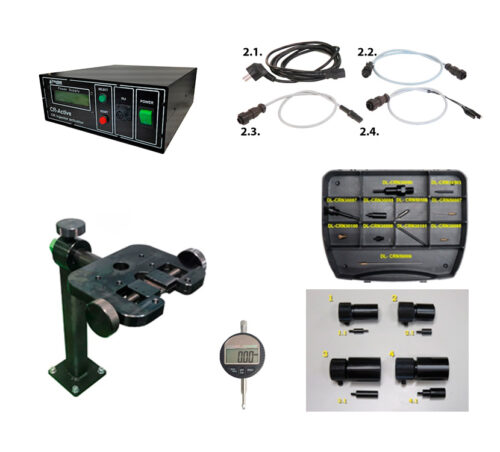

| Name | Number |
| The device signals “CR-ACTIVE” | 1 pc |
| Set of cables to the signal device “CR-ACTIVE” | |
| Power cable 220V | 1 pc |
| Main cable for connecting to the electromagnet | 1 pc |
| Adapter cable for passenger nozzle | 1 pc |
| Adapter cable for cargo nozzle | 1 pc |
| Passport (technical description, operating instructions) | 1 pc |
| Tripod for manual measurement and adjustment of nozzle parameters (for electronic measuring head) | 1 pc |
| Set of measuring probes | 1 pc |
| Set of adapters for injectors | 1 pc |
| Electronic display head | 1 pc |
| Name | Technical Data |
| Supply voltage | ~220V ±15% |
| Power consumption | до 150 W |
| Four values of the current level of the control signal | |
| The duration of the control signal | is not more than 1.5 sec |
| The number of triggers per minute | is not more than 12 |
| Short circuit protection | yes |
| The size of the activator(depth x width x height) mm | 240х230х72 |
| Device weight | up to 10 kg |
