CR-TEST-2P. Test bench for high pressure fuel pumps of Common Rail.
The CR-TEST-2P test bench allows you to perform procedures related to the testing of high-pressure fuel pumps of the Common Rail system of various manufacturers (Bosch, Denso, Delphi, VDO (Siemens)). The design of the test stand CR-TEST-2P and the elements of its equipment meet the requirements of international standards in terms of static and dynamic parameters-ISO 4008/1 and ISO 4008/2.
Technical data
| Rotation speed | 50-3500min-1 |
| Engine power | 11 kW |
| Tank capacity | 30 dm3 |
| Power supply | 3x400V/230V~ 50Hz |
| Test fluid temperature control | 0-100±1°С |
| Test fluid pressure setting | 0 – 1800±5bar |
| Pressure in rail in a range | 0 – 1800 bar |
| Pump flow measuring speed | 0,1l/min-20 l/min |
| Temperature range for measurement | -20 +90°С |
| Number of sensors in the flowmeter | 3 |
| Feed pump capacity | 6 l/min |
| Manometer for measuring supply pressure | 0÷0,16 МPa |
| Manometer after the feed pump | 0÷0,16 МPa |
| Maximum current | 30A |
| Calibration oil heater capacity | 1000W |
| Safety screen | polycarbonate 8mm |
| Dimentions | W 1110,H 1610,D 1210 mm |
| Total weight | (netto 780 kg), (brutto 840 kg) |

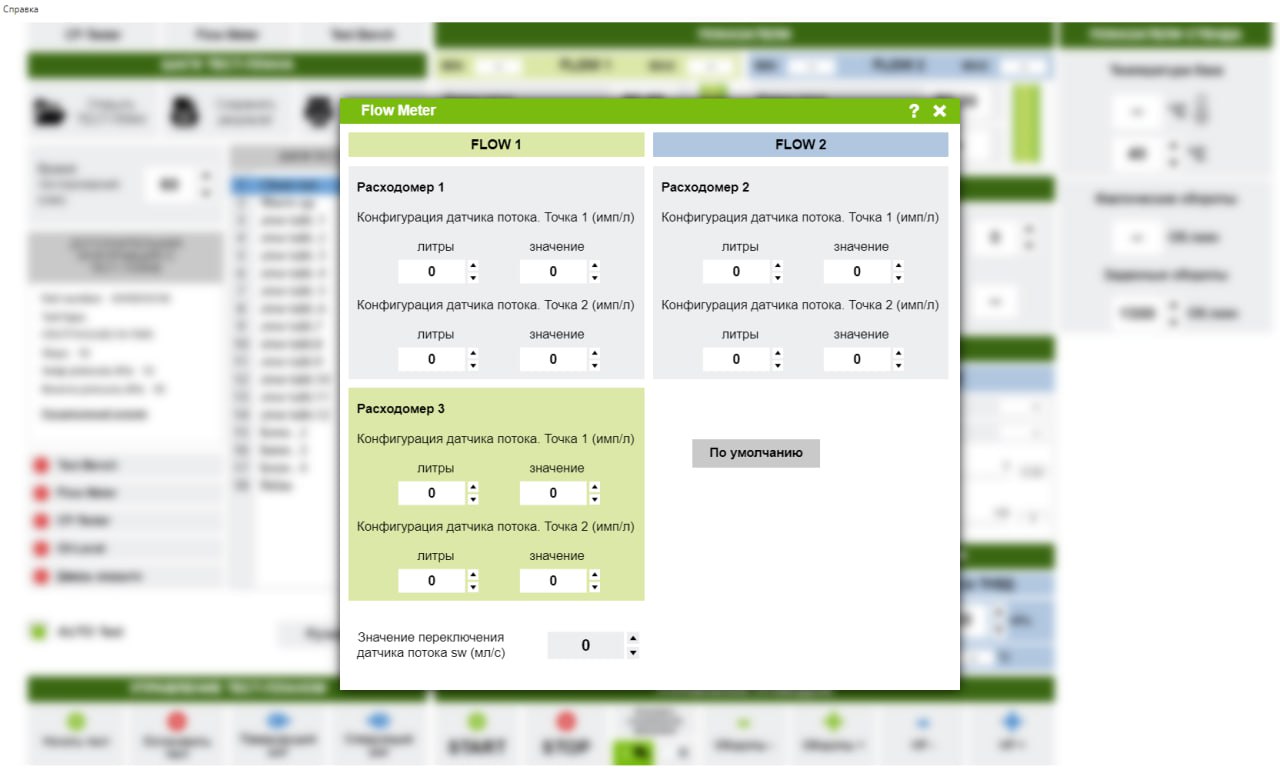

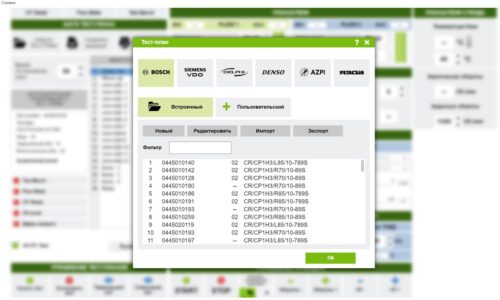

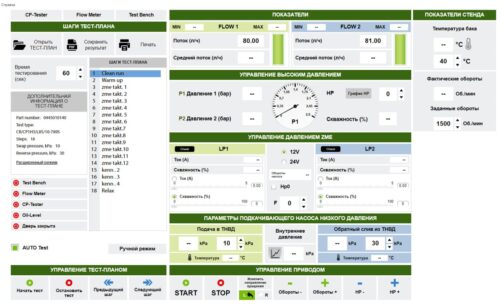

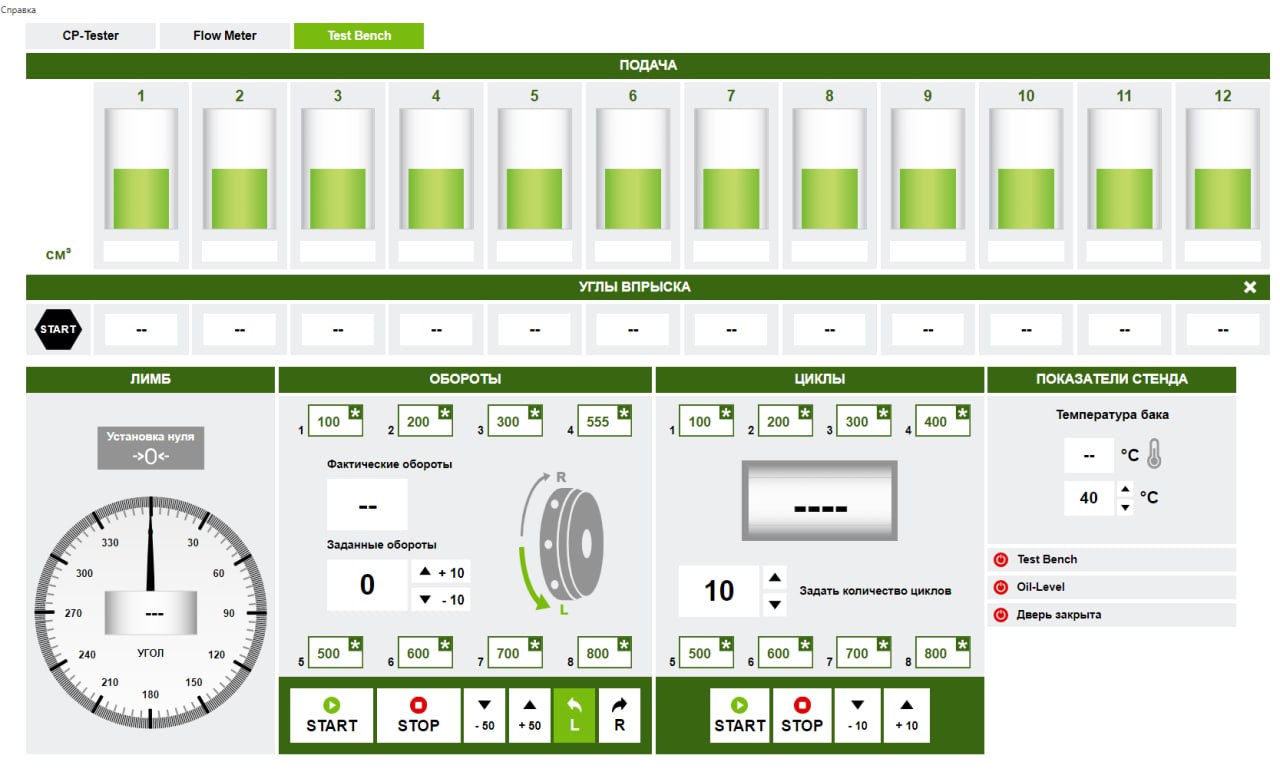

Set of delivery
| *Safety screen DL-RSZ | 1 pc. |
| *PC | 1 pc. |
| *Shelf for keyboard | 1 pc. |
| *Software | 1 pc. |
| * СP-Tester (CPT-2500) | 1 pc. |
| *Controller (FMDE-1200) | 1 pc. |
| *Shelf for tool | 1 pc. |
| *Pump bracket DL-KN125 | 1 pc. |
| Flange DL-NA107 for HPFP | 1 pc. |
| Flange DL-NA50 for HPFP | 1 pc. |
| Flange DL-NA69 for HPFP | 1 pc. |
| Coupling DL-M24 for HPFP | 1 pc. |
| Coupling DL-M17 for HPFP | 1 pc. |
| Coupling DL-M19 for HPFP | 1 pc. |
| Coupling DL-MS8 for HPFP | 1 pc. |
| Coupling DL-MS9 for HPFP | 1 pc. |
| Coupling DL-MS10S for HPFP | 1 pc. |
| Coupling DL-MS11 for HPFP | 1 pc. |
| *rail for 3 regulators | 1 pc. |
| *Pressure accumulator bracket | 1 pc. |
| *Pressure regulator 1800 bar | 3 pc. |
| *Pressure sensor 1800 bar | 1 pc. |
| **Speed sensor | 1 pc. |
| Pressure regulator cable HP | 1 pc. |
| Pressure regulator cable LP | 1 pc. |
| **Cable for the speed sensor | 1 pc. |
| Pressure sensor cable | 1 pc. |
| HP line for pumps CP2 (М14хМ14х600) | 2 pc. |
| HP line for pumps CP1-CP3 (М14хМ14х400) | 1 pc. |
| DL-1CP3004 set of hoses for СР1-СР3 | 1 pc. |
| DL-2CP2005 set of hoses for СР2 | 1 pc. |
| DL-FMDE003 Set of hoses | 1 pc. |
| DL-KUK0040 Set of fittings for HPFP | 1 pc. |
| Fine filter | 2 pc. |
| Door key | 4 pc. |
| Legs | 4 pc. |
* installed on the bench
** optional order
Scheme of CR-TEST-2P
- Upper box for electrics
2. Monitor
3. Front panel
4. Schelf for keyboard
5. Shelf for tools
6. Lower box for electrics
7. Front control panel
8. Feed pump
9. Fine filter for test fluid №1
10. Fine filter for test fluid №2
11.Radiator
12. Main tank fluid
13. Drain fluid tank
14. Work zone
15. Safety frame
16. Pressure accumulator (Rail)
17. Controllers unt front panel
18. Controllers unit
19. Power panel
20. Radiator with forced air cooling, two-piece
21. Back wall
22. Flange
