DL-044 (CR32114)
- Description
- Package contents
- Extra

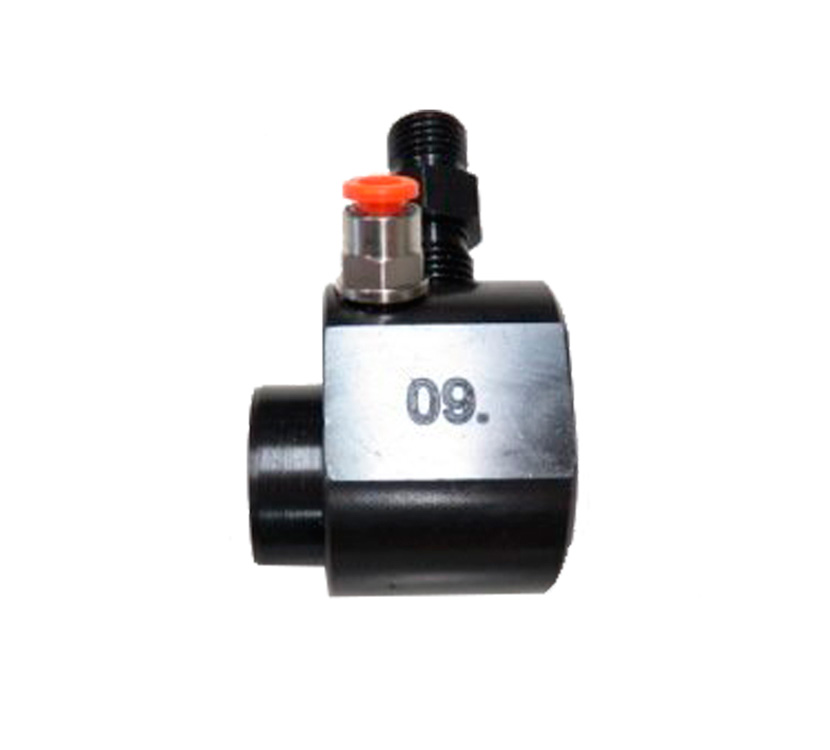

DL-044 (CR32114). Adapter for testing MAN injector 0445124052
Adapter for testing truck injectors on a test bench or on a manual press with a signal simulator
Fuel is supplied from the high-pressure pipe via a side-entry fitting.
To install the adapter, place its front part into the injector fuel inlet port and then tighten it firmly against the injector.
Do not over-tighten or under-tighten the side-entry fitting.
Return fuel from the injector is discharged through a quick-connect fitting (Ø 6 mm).
Note: The collet receiver (7 mm) is not included with the adapter.
| No. | Article | Name | Qty |
|---|---|---|---|
| 1 | DL-044 (CR32114) | Adapter body for testing MAN injector 0445124052 | 1 pc |
| 2 | DL-CR50303 | Supply fitting assembly for truck adapter | 1 pc |
| 3 | 34-RL010601C | Fittings straight with collet | 1 pc |
Adapter for testing injectors: 0445124052, 6195 4052, 7700 95530, 0709С1553
