DL-UNI50375. Fitting kit for gauge connection.

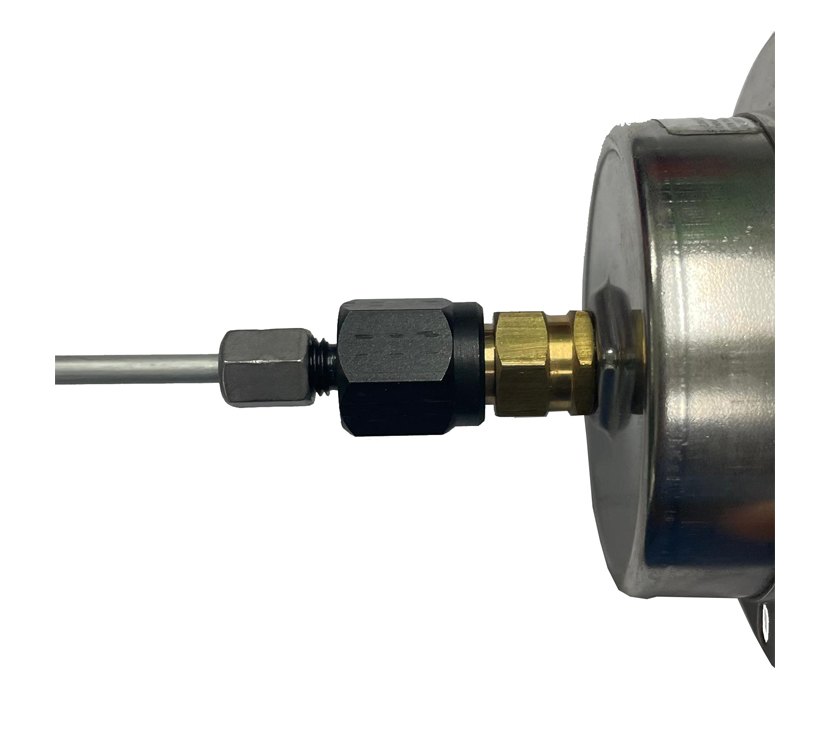

The fitting has an internal G1/4″ thread for connection to a gauge with the same thread, and an external (male) M8x1 thread. On the M8x1 side, there is an internal groove for the shut-off sleeve DL-24-SLL-04 and a Ø4mm port for connection to a Ø4mm metal tube. When a metal tube is installed, the system’s working pressure can be up to 1000 bar.

Attention! The Ø4mm tube is purchased separately.

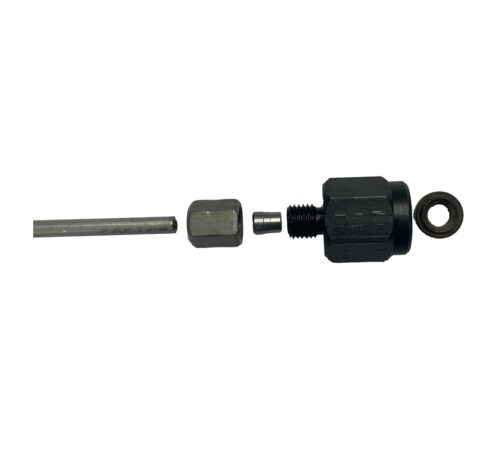

Configuration as shown in the photo:

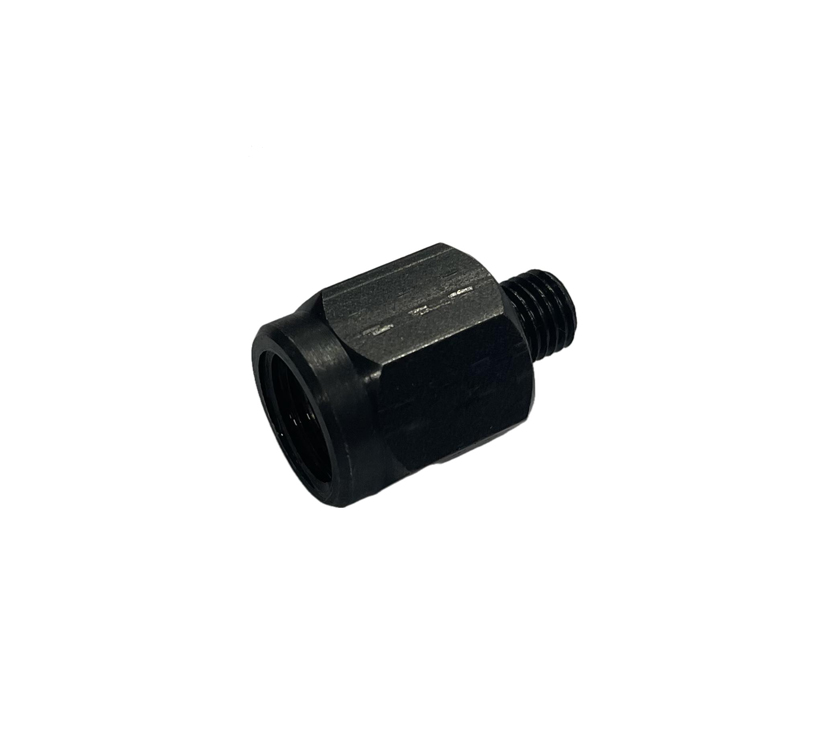

— DL-UNI30580 Fitting G1/4″ to M8x1 with Ø4mm port
— DL-UNI30581 Sealing washer 11×5.5×3.5 mm
— DL-24-MLL-04 Nut
— DL-24-SLL-04 Shut-off sleeve (ring)
— DL-TP0040010E235Z Tube Ø4mm

DL-UNI30580 Fitting G1/4″ to M8x1 with 4mm port — 1 pc.
DL-UNI30581 Sealing washer 11×5.5×3.5mm — 1 pc.
DL-24-MLL-04 Nut — 1 pc.
DL-24-SLL-04 Shut-off sleeve (ring) — 1 pc.

• Attention! The DL-TP0040010E235Z Ø4mm tube is purchased separately.
