DL-UP-DRTAIR
  • Description
  • Package contents
  • Extra

DL-UP-DRTAIR. Dorpat test stand air cooling manifold kit

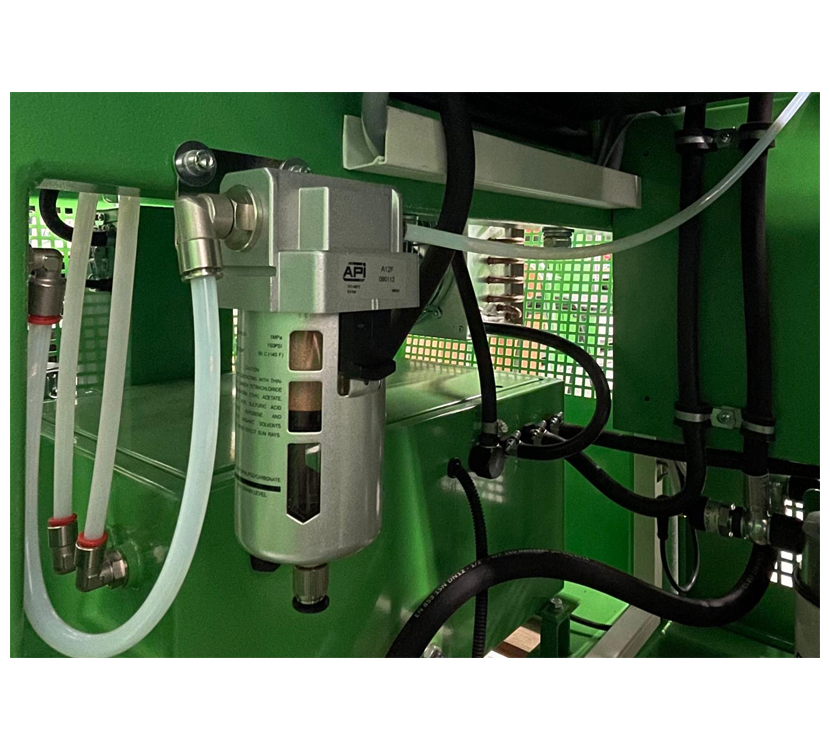

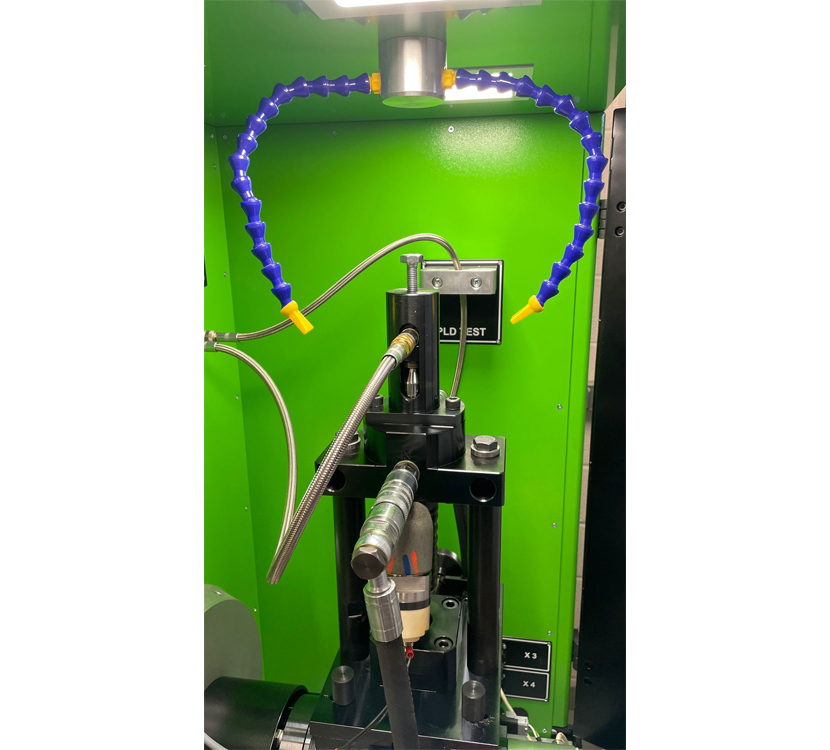

The supply air line is connected via the external connection adapter DL-54-N3-253B with G1/8″ thread, and then via an elbow adapter Ø8mm with the same thread. The line is connected to the air filter DL-33-A12F through an elbow adapter DL-34-MA16-08-12 Ø8mm x G1/2″ and via a straight adapter Ø8mm x G1/2″ DL-34-MA12-08-12 it is connected to the airflow pressure regulator D-33-BIT-R-02/H. From there, it connects via an elbow adapter Ø8mm x G1/4″ of the air duct bracket DL-UNI31313. Forced air cooling is delivered to the equipment under test via telescopic air ducts DL-TAIR-DRT.

Attention! Components of the kit can be purchased separately.

The kit includes:

  • DL-33-A12F Filter — 1 pc.

  • DL-33-SFL12 Filter Bracket — 1 pc.

  • DL-UNI31313 Air Duct Bracket — 1 pc.

  • DL-TAIR-DRT Telescopic Air Ducts — 2 pcs.

  • DL-34-MA16-08-12 Elbow Quick Connector, G1/2″ x Ø8mm — 1 pc.

  • DL-34-MA12-08-12 Straight Quick Connector, G1/2″ x Ø8mm — 1 pc.

  • Elbow Quick Connector, G1/8″ x Ø8mm — 1 pc.

  • Elbow Quick Connector, G1/4″ x Ø8mm — 1 pc.

  • DL-34-MA40-00-08 Quick Connector Plug — 1 pc.

  • DL-54-N3-253B External Connection Adapter — 1 pc.

  • DL-P1006 PTFE Tubing Ø8mm — 3 m

*The D-33-BIT-R-02/H Airflow Pressure Regulator can also be supplied if required — 1 pc.
