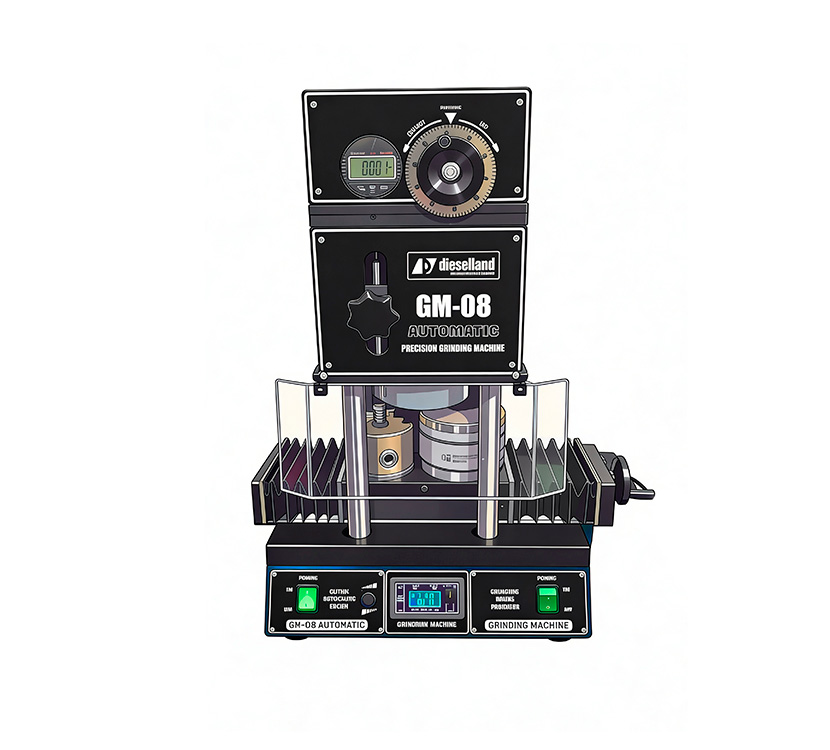

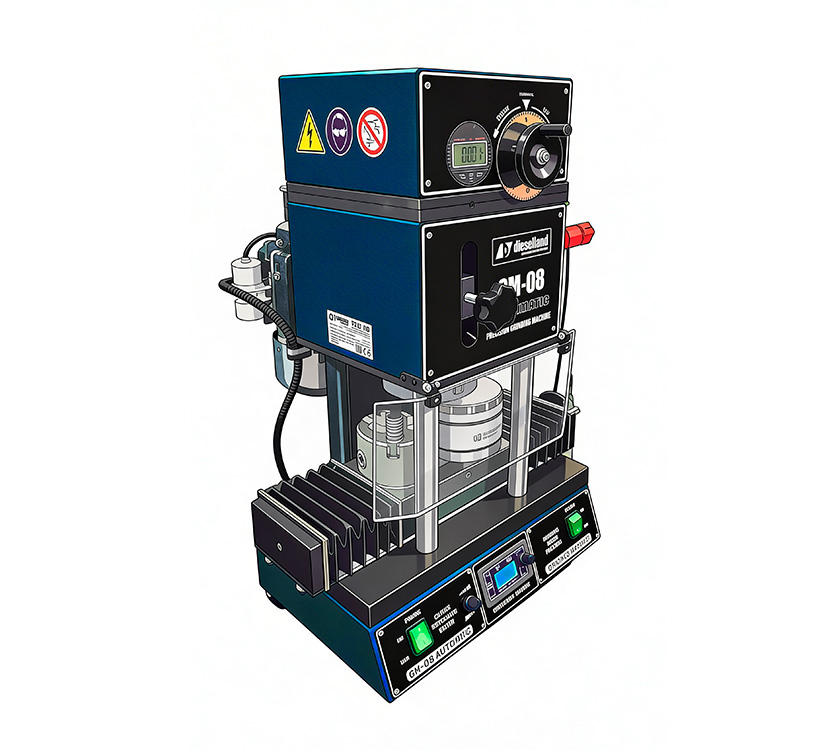

GM-08 Automatic Surface grinding machine with rotary chuck and automatic control of the lower movable table

The machine is equipped with a controller that allows the movable table to be operated in either automatic or manual mode. Several preset travel patterns for the lower table are available, and individual programming is also supported.

The use of wheels with mandrels makes it possible to quickly change the wheel to a tool of a different grit, depending on the workpiece. To use the  Grinding wheel with mandrel on early GM-08 machines, it is necessary to replace the drive shaft with a DL-GM31280. The mandrel for grinding wheels must be ordered separately. With a one-time purchase of an grinding wheel and a wheel holder -mandrel, the kit is supplied with a machined wheel surface. (Processing of the wheel in assembly with the mandrel ensures the maximum reduction of vibrations during operation and improves the quality of the processing of parts).

Article	Name	Characteristics	Image
DL-UNI20205	Grinding wheel for GM-08 straight *mandrel sold separately	Landing diameter 20 mm Outside diameter 100 mm Grit 80 grit
DL-UNI20206	Grinding wheel for GM-08 straight *mandrel sold separately	Landing diameter 20 mm Outside diameter 100 mm Grit 60 grit
DL-UNI20207	Grinding wheel for GM-08 straight *mandrel sold separately	Landing diameter 20 mm Outside diameter 100 mm Grit 40 grit
DL-UNI20208	Grinding wheel for GM-08 conical	Landing diameter 32 mm Outside diameter 125 mm Grit 80 grit
DL-GM50248	Modernized machine grinding wheel holder- mandrel GM-08
DL-GM31280	Drive shaft with a cone fit under the mandrel for the modernized GM-08 machines manufactured before 04.2020
DL-GM50263	Wheel remover with mandrel from the cone of the shaft of the machine GM-08
