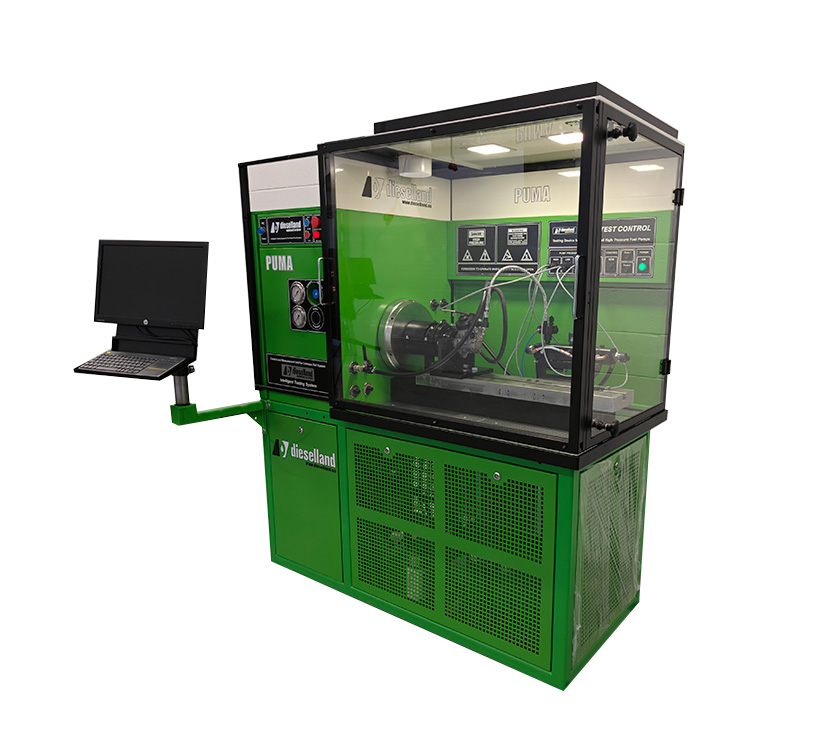

PUMA Equipment for testing high pressure fuel pumps on Common Rail system
The PUMA test bench allows you to perform procedures related to the testing of high-pressure fuel pumps of the Common Rail system of various manufacturers (Bosch, Denso, Delphi, VDO (Siemens)). The design of the test stand CR-TEST-2P and the elements of its equipment meet the requirements of international standards in terms of static and dynamic parameters-ISO 4008/1 and ISO 4008/2.
Technical data
| Rotation speed | 50-3500min-1 |
| Engine power | 11 kW |
| Tank capacity | 30 dm3 |
| Power supply | 3x400V/230V~ 50Hz |
| Test fluid temperature control | 0-100±1°С |
| Test fluid pressure setting | 0 – 1800±5bar |
| Pressure in rail in a range | 0 – 1800 bar |
| Pump flow measuring speed | 0,1l/min-20 l/min |
| Temperature range for measurement | -20 +90°С |
| Number of sensors in the flowmeter | 3 |
| Feed pump capacity | 6 l/min |
| Manometer for measuring supply pressure | 0÷0,16 МPa |
| Manometer after the feed pump | 0÷0,16 МPa |
| Maximum current | 30A |
| Calibration oil heater capacity | 1000W |
| Safety screen | polycarbonate 8mm |
| Dimentions | W 1110,H 1610,D 1210 mm |
| Total weight | (netto 780 kg), (brutto 840 kg) |
Set of delivery
| *Safety screen DL-RSZ | 1 pc. |
| *PC | 1 pc. |
| *Shelf for keyboard | 1 pc. |
| *Software | 1 pc. |
| * СP-Tester (CPT-2500) | 1 pc. |
| *Controller (FMDE-1200) | 1 pc. |
| *Shelf for tool | 1 pc. |
| *Pump bracket DL-KN125 | 1 pc. |
| Flange DL-NA107 for HPFP | 1 pc. |
| Flange DL-NA50 for HPFP | 1 pc. |
| Flange DL-NA69 for HPFP | 1 pc. |
| Coupling DL-M24 for HPFP | 1 pc. |
| Coupling DL-M17 for HPFP | 1 pc. |
| Coupling DL-M19 for HPFP | 1 pc. |
| Coupling DL-MS8 for HPFP | 1 pc. |
| Coupling DL-MS9 for HPFP | 1 pc. |
| Coupling DL-MS10S for HPFP | 1 pc. |
| Coupling DL-MS11 for HPFP | 1 pc. |
| *rail for 3 regulators | 1 pc. |
| *Pressure accumulator bracket | 1 pc. |
| *Pressure regulator 1800 bar | 3 pc. |
| *Pressure sensor 1800 bar | 1 pc. |
| **Speed sensor | 1 pc. |
| Pressure regulator cable HP | 1 pc. |
| Pressure regulator cable LP | 1 pc. |
| **Cable for the speed sensor | 1 pc. |
| Pressure sensor cable | 1 pc. |
| HP line for pumps CP2 (М14хМ14х600) | 2 pc. |
| HP line for pumps CP1-CP3 (М14хМ14х400) | 1 pc. |
| DL-1CP3004 set of hoses for СР1-СР3 | 1 pc. |
| DL-2CP2005 set of hoses for СР2 | 1 pc. |
| DL-FMDE003 Set of hoses | 1 pc. |
| DL-KUK0040 Set of fittings for HPFP | 1 pc. |
| Fine filter | 2 pc. |
| Door key | 4 pc. |
| Legs | 4 pc. |
* installed on the bench
** optional order
