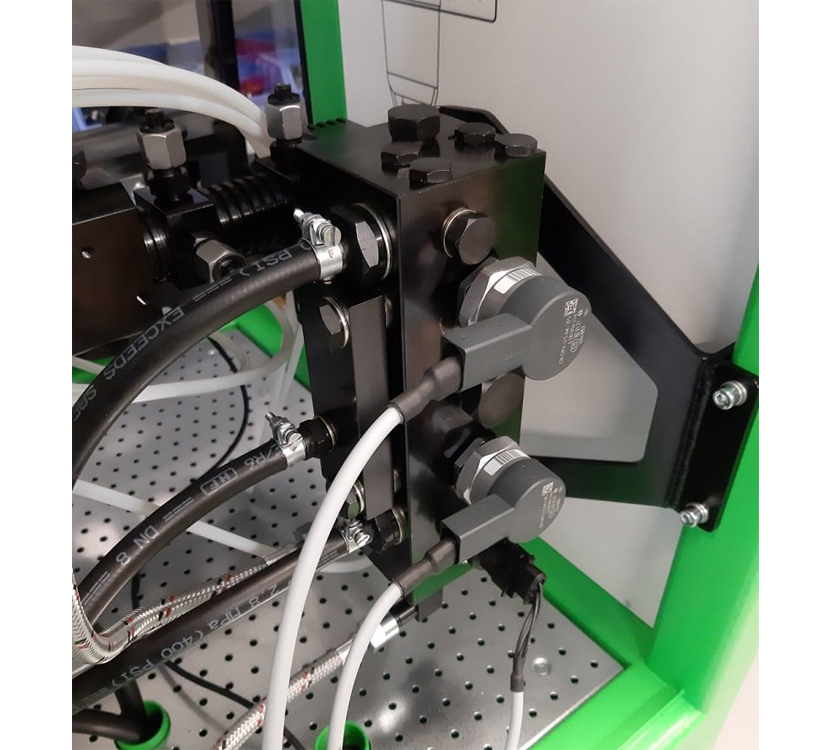

DL-CR32067. Pressure accumulator (rail) for testing pumps with cooling (for 2 pressure regulators)
Pressure accumulator (rail) for testing CP1, CP2, CP3, CP4, Delphi, Denso pumps.
The rail is equipped with cooling channels to ensure improved thermal stability during testing of Common Rail pumps.
- pressure sensor port (M18×1.5);
- pressure regulator ports (2, M24×1.5 mm);
- return fitting ports (2, 1/4″);
- cooling line ports (2, 1/2″);
- high-pressure inlet port (1, M18×1.5 mm);
- cooling channel plug ports (4, 1/8″);
- mounting holes (4 blind, M8).
| No. | Article | Description | Qty |
|---|---|---|---|
| 1 | — | Pressure accumulator for 2 pressure regulators (PRs) | 1 pc |
| 2 | DL-CR30497 | Blanking plug (M24×1.5 mm) in place of pressure regulators | 2 pcs |
| 3 | DL-UNI30162 | Blanking plug (M18×1.5 mm) in place of pressure sensor | 1 pc |
| 4 | DL-UNI30056 | Fitting (1/2″ × 8 mm) for coolant supply and return for cooling | 2 pcs |
| 5 | DL-UNI30020 | Fitting (1/4″ × 8 mm) for return flow from pressure regulators (PRs) | 3 pcs |
| 6 | DL-UNI31478 | Fitting (M18×1.5 mm × M14×1.5 mm) for high-pressure fuel | 3 pcs |
| 7 | DL-UNI50271 | Blanking plug for DL-UNI31478 fitting | 1 pc |
| 8 | DL-UNI30203 | Blanking plugs (1/8″) for cooling channels | 4 pcs |
| 9 | DL-UNI30635 | Blanking plug (M12×1.5) with metal-rubber sealing washer | 1 pc |
ATTENTION! Regulators and pressure sensor are not included!

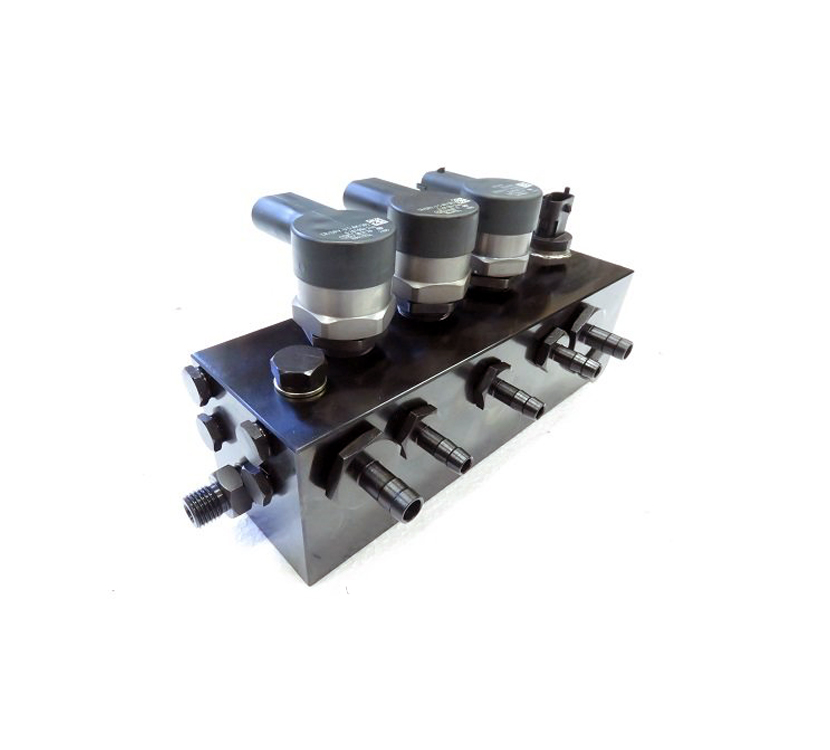

- The DL-CR31514 drain rail is intended for use with the main pressure accumulator (rail) fitted with 3 pressure regulators. It features three inlet ports for banjo fittings and two outlet ports. One outlet port is sealed with a plug, and the other is equipped with a fitting for the common return from all 3 pressure regulators.
This drain rail facilitates the routing of drain hoses. In standard configuration with the DL‑CR31049 pressure accumulator, the return flow is taken from each pressure regulator (PR) separately. With this drain rail installed, the return is directed through one single fitting.
The delivery set includes:
1. DL-UNI31519 Banjo fitting 1/4″ (3 pcs.)
2. DL-UNI30203 Blanking plugs 1/8″ (4 pcs.)
3. DL-UNI30112 Drain fitting from rail M12×1.5 × 8 mm (1 pc.)
4. DL-UNI30636 Blanking plug M12×1.5 mm (1 pc.)
- The DL-CR31528 drain rail is intended for use with the main pressure accumulator (rail) fitted with 2 pressure regulators. It features two inlet ports for banjo fittings and one outlet port for the return line. The outlet port is equipped with a fitting that provides the common return from both pressure regulators.
This drain rail facilitates the routing of drain hoses. In the standard configuration with the DL‑CR31049 pressure accumulator, the return flow is taken from each pressure regulator separately. With this drain rail installed, the return is directed through one single fitting.
The delivery set includes:
1. DL-UNI31519 Banjo fitting 1/4″ (2 pcs.)
2. DL-UNI30203 Blanking plugs 1/8″ (3 pcs.)
3. DL-UNI30112 Rail drain fitting M12×1.5 × 8 mm (1 pc.)
- The DL-CR32047 drain rail is intended for use with the main pressure accumulator (rail) fitted with 2 pressure regulators. It features two inlet ports for banjo fittings and one outlet port for the return line. The outlet port is equipped with a fitting that provides the common return from both pressure regulators.
This drain rail facilitates the routing of drain hoses. In the standard configuration with the DL‑CR31049 pressure accumulator, the return flow is taken from each pressure regulator separately. With this drain rail installed, the return is directed through one single fitting.
The delivery set includes:
1. DL-UNI31519 Banjo fitting 1/4″ (2 pcs.)
2. DL-UNI30203 Blanking plugs 1/8″ (3 pcs.)
3. 34-RL310801 Angle fitting G1/4″ × 8 mm (1 pc.)
- DL-UNI21042 Pressure accumulator mounting bracket
| Article | Name | Application | Photo |
|---|---|---|---|
| Fittings and blanking plugs for pressure accumulators (rails) | |||
| DL-UNI30218 | Fitting M14×1.5 – M14×1.5 | Pressure accumulators (Rails) |  |
| DL-UNI31498 | Fitting M14×1.5 – M12×1.5 | Pressure accumulators (Rails) |  |
| DL-UNI50271 (CR30) |
Blanking plug with internal thread M14×1.5 | Fitting DL-UNI30218 |  |
| DL-UNI50275 | Blanking plug with internal thread М12×1,5 | Fitting DL-UNI31498 |  |
| DL-UNI30529 | Blanking plug with external thread M14×1.5 | Pressure accumulators (Rails) |  |
| DL-CR30493 | Blanking plug with external thread M20×1.5 | Instead of the safety valve for the pressure accumulator (rail) |  |
| DL-UNI30159 | Heat-treated blanking plug with external thread M24×1.5 | Instead of the pressure regulator for the pressure accumulator (rail) |  |
| DL-UNI30162 | Blanking plug with external thread M18×1.5 | Instead of the pressure sensor for the pressure accumulator (rail) |  |
| DL-UNI30636 | Blanking plug with external thread M12×1.5 | For the drain port in the pressure accumulator (rail) |  |
| Adapters for high-pressure filter, pressure sensor, and safety valve: | |||
| DL-CR50121 | Adapter for high-pressure fuel filter DL-UNF21100 | Installed instead of the standard fitting into the pressure accumulator (rail) DL-CR30181, DL-CR30522 , DL-CR30188, DL-CR31053, DL-CR31049, DL-CR31257, DL-CR30180, DL-CR30479, DL-CR30526, DL-CR30878, DL-CR30777. |  |
| DL-CR50454 | Фильтр высокого давления М14х1,5 на М18х1,5 | Монтируется вместо обычного штуцера в накопитель давления (Rail) DL-CR32067 и DL-CR31049 |  |
| DL-UNI30650 | Переходник под предохранительный клапан | Монтируется в накопители давления: DL-CR30181, DL-CR30522 , DL-CR30188, DL-CR30180, DL-CR30479, DL-CR30526 |  |
| DL-UNI30796 | Переходник с резьбы М14 на М18 | Для установки датчика давления в накопителях давления: DL-CR30479, DL-CR30180, DL-CR30526, DL-CR30878, DL-CR30777 |  |
